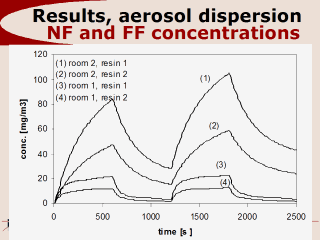

Assuming successive sequences of spraying of 10 minutes, the theoretical overspray concentration levels may be calculated for different rooms and resin mixtures.

Rooms
  • 1: 43m2 room (window open),
  • 2: 12m2 room (window closed)

Resins

  • 1: old resin composition
  • 2: new resin composition

The concentrations obtained are relatively high, mainly because of the conservative model and hypothesis used. Relative comparisons between different exposure situations may be done however.
