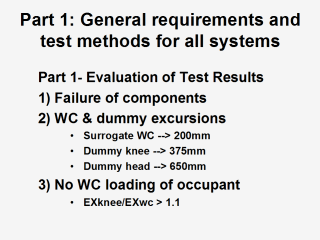

After the
dynamic test, the above three conditions must be met for a WTORS to pass the
test. 1) First, there can be no obvious structural failure of the WTORS 2) During the test, the maximum excursions of the surrogate W/c, ATD’s knee and ATD’s head cannot exceed the values shown above, and 3) The back of the surrogate W/c cannot itself apply a load on the ATD, which is verified by applying the above simply formula. |
